cimd is about collecting and sharing structured metadata of CI/CD processes.

cimd is an acronym for Continuous Integration Meta Data.

🤓 Motivation ··· 🚀 Features ··· ⚙️ Installation

🐍 Development ··· 📄 Specification ··· ℹ️ Similar Project

Badges

Motivation

To enable a fast overview of recent pipelines and their metadata in a GitLab-managed repository, this project provides the backend and frontend capabilities to extend the GitLab pipeline list with a custom metadata column.

GitLab already has some metadata mechanisms (e.g. coverage patterns), but they are limited to a specific scope.

The basic idea of this project is to prepare and provide extensible metadata artefacts on a well-known position, which can be easily fetched and parsed by a custom user script to extend the pipeline list with metadata item representations.

Features

cimd contains of a command line tool (CLI) and a frontend user script.

Frontend

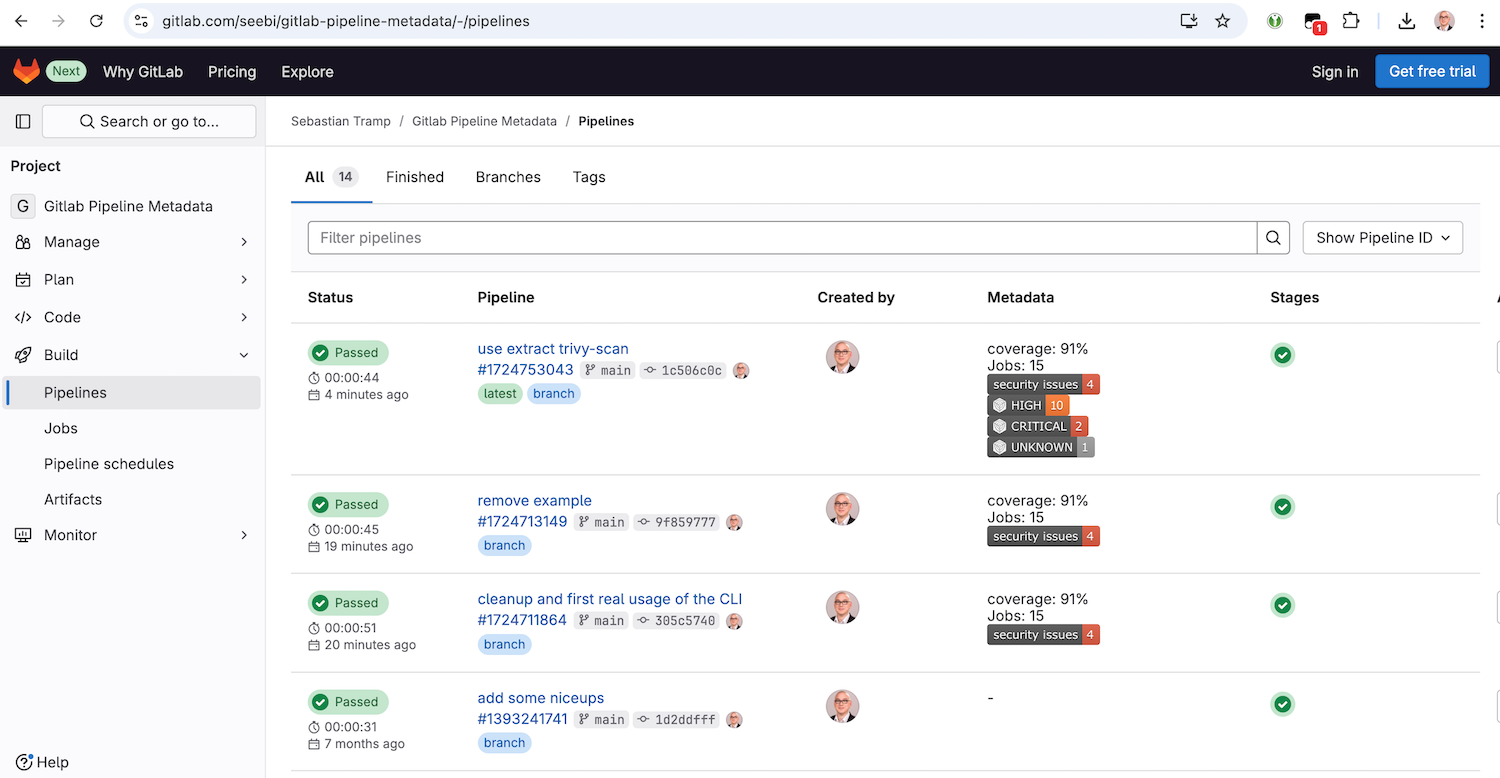

The frontend is available as a single JavaScript file in the js folder. It is currently tested with Tampermonkey on Google Chrome only 🙈. Once activated, it will extend the pipeline view of your GitLab project with a metadata column, showing the items (screenshot example below).

Command Line Tool

The CLI is used to prepare and manipulate metadata items in a __metadata__.json document.

It has the following features:

• commands for basic CRUD operations:
  • add - add a metadata item
  • delete - delete metadata items
  • get - get data of a metadata item
  • list - list metadata items
• extract command group, which collects commands to extract metadata items from different sources:
  • coverage-xml - extract metadata from a Coverage XML output files
  • junit-xml - extract metadata from JUnit XML output files
  • pipeline-logs - extract metadata from gitlab pipeline job logs
  • trivy-scan - extract metadata from Trivy scan JSON output files
• extend command group, which collects commands to extend metadata items in a special way:
  • gitlab-link - extend metadata items with a raw gitlab artifact link
  • shields-badge - extend metadata items with a shields.io badge

Installation

Frontend

To install the frontend userscript with a user script manager such as Tampermonkey, you have the following options:

• Recommended: Go to the greasyfork.org entry of cimd and click the install button.
• Create a new script entry and copy/paste the content of the script from the js folder.

After installation, feel free to go to the example pipeline list at gitlab.com/seebi/gitlab-pipeline-metadata.

Command Line Tool

To install and use the cimd command line interface, you have all the options the python ecosystem provides:

• Recommended ... via pipx

  pipx install cimd


• The cool way ... via uv

  uvx cimd


• There is also a docker image ...

  docker run -i -t --rm -v $(pwd):/data seebi/cimd


Development

• Run task to see all major development tasks.
• Use pre-commit to avoid errors before commit.
• This repository was created with this copier template.

Specification

This section describes the details about the JSON data artifact (__metadata__.json) which holds your pipeline metadata.

Location

In your pipeline description, create a job which provides a JSON artifact adhering to the schema at the path __metadata__.json.

An example .gitlab-ci.yml, which creates some basic metadata items, is available at gitlab.com/seebi/gitlab-pipeline-metadata.

Content

The content of the __metadata__.json is a simple structure to describe separate metadata items.

{
    "items": {
        "coverage": {
            "value": "87%"
        }
    }
}

{
    "items": {
        "coverage": {
            "value": "87",
            "comment": "'value' is the only mandatory key of a metadata item."
        },
        "jobs": {
            "value": "15",
            "label": "Jobs",
            "description": "Number of overall jobs executed in the pipeline.",
            "comment": "'label' and 'description' can be used to enhance the UI."
        },
        "security_issues": {
            "value": "4",
            "image": "https://img.shields.io/badge/security%20issues-4-red",
            "link": "https://example.org/security_issues",
            "comment": "We all love badges - and clickable badges are even better."
        }
    }
}

Schema

The proposed JSON structure is formalized as a JSON Schema which is available at schema/schema.json or can be visualized in the json-schema-viewer@vercel.app.

Similar Projects

💬 Drop me a note if you miss a project here ...

• github-action-benchmark - is a GitHub Action for continuous benchmarking to keep performance
