Project description

Display Image

Display image is a Python project which provides a command display-image to visualize the image and metadata by QtPy6.

Installation

pip install display-image

Usage

display-image -i <path_to_image>

The following format extensions can be displayed by command display-image

Image format Read EXIF Pixel precision Pixel type File extension Sidecar needed
BMP x 8 bits Grayscale, RGB, RGBA .bmp
CFA x 16 bits Bayer .cfa
DNG x x 16 bits Bayer .dng
JPEG x x 8 bits Grayscale, RGB .jpg, .jpeg
MIPI RAW x 10 bits, 12 bits Bayer .RAWMIPI, .RAWMIPI10, .RAWMIPI12 x
PLAIN RAW x * * .raw .plain16, * x
PNG x 8 bits Grayscale, RGB, RGBA .png
TIFF x x 8 bits, 16 bits Bayer, RGB .tif, .tiff

Read Camera manufacturer RAW image display

The RAW image formats of the following camera manufacturers are supported, user can display these camera raw files by dependency cxx-image-io versionv1.1.2.

Camera manufacturer Image format
Canon CR2
Nikon NEF
Sony ARW
Panasonic RW2
Kodak DCR
Samsung SRW
Olympus ORF
Leica RAW
Pentax PEF

displaye-image RAW image

  • User can scroll mouse to zoom in/out, and at bottom it can display the zoom factor and pixel value where use clicked with mouse.
  • Since 0.1.6, CalibrationData, CameraControls, LibRawParams are added in metadata info display, they includes some image processing params such as:
    • black level and white level
    • color matrix
    • white balances scales
    • visible zone crop coordinates on camera Raw image

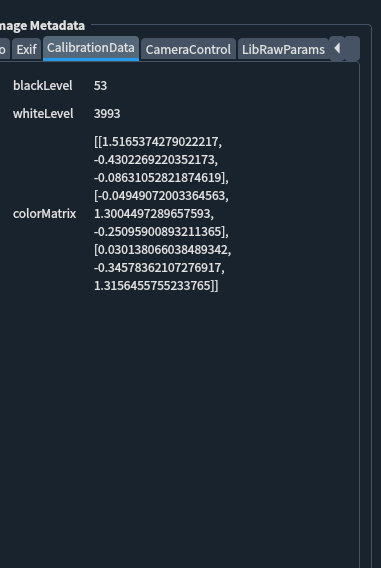

Calibration

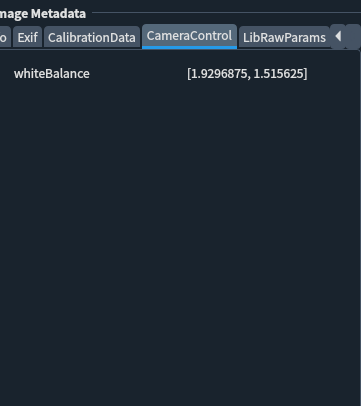

CameraControls

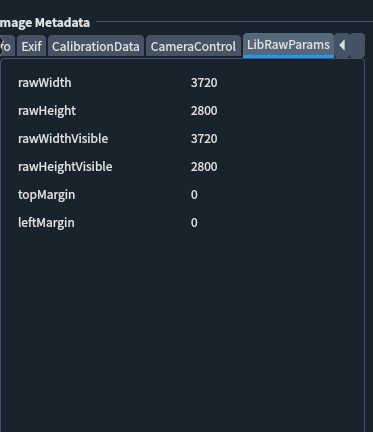

LibRawParams

Image display with sidecar JSON

Some file formats need to know in advance some informations about the image. For example, the PLAIN RAW format is just a simple dump of a buffer into a file, thus it needs to know how to interpret the data. In this case, user need to have an image sidecar JSON located next to the image file as the same name and path path_to_image.json

{
    "fileInfo": {
        "format": "plain",
        "height": 3072,
        "width": 4080
        "pixelPrecision": 16,
        "pixelType": "bayer_gbrg",
    }
}

After image reading, the information in JSON sidecar will be shown in tab Widegt of ImageMetadata

Other image reading with sidecar examples

Click to unfold other image format sidecar examples

Packed RAW MIPI 12 bits:

sidecar json

{
    "fileInfo": {
        "fileFormat": "raw12",
        "height": 3000,
        "width": 4000,
        "pixelPrecision": 12,
        "pixelType": "bayer_gbrg"
    }
}

Packed RAW MIPI 10 bits:

sidecar json

{
    "fileInfo": {
        "height": 3000,
        "width": 4000,
        "format": "raw10",
        "pixelPrecision": 10,
        "pixelType": "bayer_grbg"
    }
}

License

This project is licensed under the MIT License - see the LICENSE.md file for details.
