N-dimensional plotting: ndplot

This post-processing tool generates an n-dimensional plot from a given colletion of figures. There are many other tools out there that perform the very same task (e.g. napari, paraview, visit), but they all have very steep learning curves. On the other hand, ndplot is designed to be extremely easy to use, simply run

ndplot -d /dir/with/the/figures/to/plot

with figures names that must respect the following format

<optional_prefix><par1>=<val1>_<par2>=<val2>_...<parN>=<valN>.[png|jpg|gif]

For example

/dir/with/the/figures/to/plot
...

Also, running the tool with no flags will scan the current directory. That's it!

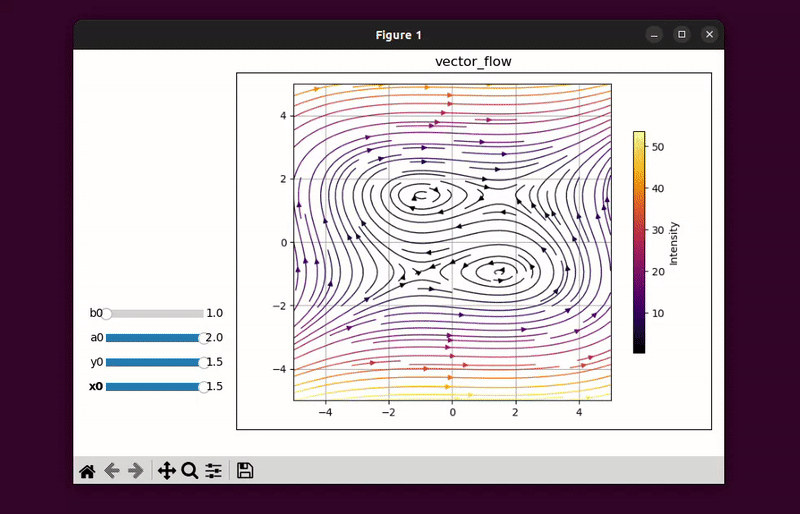

Finally, to navigate through the parameter space simply click on the sliders directly, or select a parameter with the numpad and scroll using the mouse wheel.

Installation

You can install ndplot from the official PyPi repository using pip

pip install ndplot

Equivalently, you can download the most recent release from here and install it manually.

Features and performaces

The command line tool provides the following flags:

• -h prints a help dialogue;
• -v prints the currently installed version;
• -d input directory where the figure to be loaded are stored (optional).

Also, this tool uses a few optimizations to plot and display the graphs interactively:

• figures are "lazy loaded", i.e. the system only reads a figure when it has to be displayed. In this way, ndplot can handle folder with thousand of plots without lagging.
• most recent figures are cached, so to further reduce I/O usage.
• parameters do not need to be equally spaced or to cover the whole parameter manifold. ndplot handles empty domains of the parameter space by simply falling back to the previously shown figure.

Support

I developed this tool in my spare time as I needed something to quickly plot really many figures. If you also find it usefull please consider
